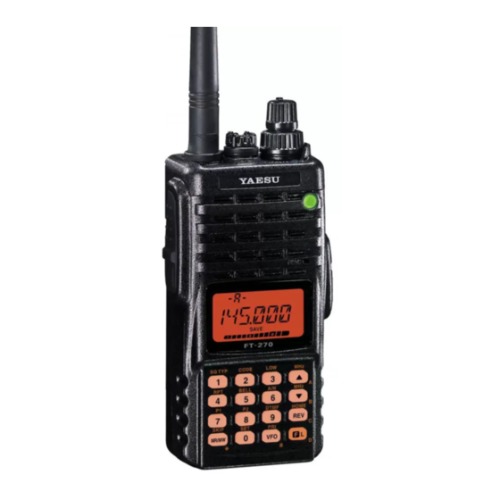

SPESIFIKASI HT YAESU FT 270R :


GENERAL
Frequency Range Receive   : 136 - 174 MHz
Frequency Range Transmit  : 144 - 148 MHz
Channel Steps                   : 5/10/12.5/15/20/25/50 & 100 kHz
Standard Repeater Shift      : ±600 kHz
Emission Type                    : F2D, F3E
Supply Voltage                    : 7.2 VDC
Current Consumption           : 165 mA (Receive)
                                           8 mA (Auto Power Off)
                                           1500mA (5W)
Case Size                           : 2.4" (W) x 4.7" (H) x 1.3" (D)
Weight                               : 13.8 oz 390 g. (with antenna & battery)



RECEIVER
Circuit Type                       : Double-conversion superheterodyne
Sensitivity (12dB SINAD)      : Better than 0.16uV
Adjacent Channel Selectivity : Better than 70 dB
Intermediate Frequencies     : First:  21.7 MHz. Second:  450 kHz.
Intermodulation                  : Better than 70 dB
AF Output                            : 800 mW @ 16 Ohms for 10% THD (@ 7.4 V)


TRANSMITTER
RF Power Output      : 5/2/0.5W (@ 7.2 VDC)
Frequency Stability  : Better than ±5 ppm
Modulation Type      : Variable Reactance F2D, F3E
Maximum Deviation    : ±5 kHz / ±2.5 kHz
Spurious Emission    : Better than 60 dB below carrier (at high and medium power)
Microphone Impedance : 2 k Ohm Condenser

UNTUK HARGA KAMI AKAN BERIKAN MELALUI PENAWARAN DENGAN HARGA TERBARU DAN HARGA TERBAIK.
