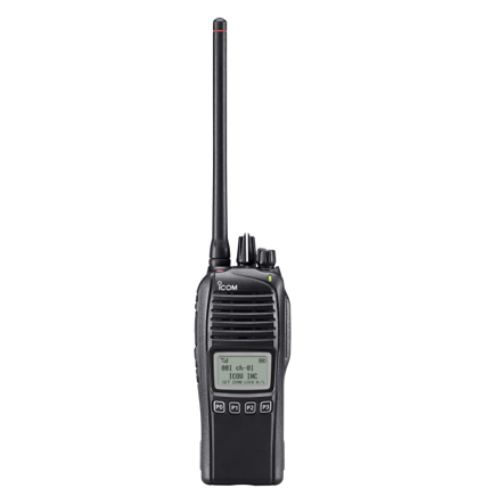

Handy Talkie ICOM IC F4263 DS/DT
Icom Handy Talky UHF Series
Full-Featured IDAS™ Digital Handheld with Built-in GPS and Waterproof Protection
IDAS™ Features
MDC 1200 Compatible*
Built-in MDC sinyal ini menyediakan selektif panggilan dan ANI fitur berikut.
* Analogue mode only
Other features
(* = Analogue mode only)
IC-F3263DT/DS |
IC-F4263DT/DS |
|||
|---|---|---|---|---|
| Frequency coverage |
136–174 MHz
|
350–400 MHz
400–470 MHz 450–520 MHz |
||
| Number of channels |
512 channels/128 zones
|
|||
| Channel spacing |
25/12.5/6.25kHz
|
|||
| Type of emission |
16K0F3E/8K50F3E/4K00F1E/F1D
|
|||
| Current drain (approx.) |
Tx High (at 5W) |
1.7A
|
1.8A
|
|
| Rx | Rated output |
550mA
|
||
| Standby |
160mA
|
|||
| Dimensions (W×H×D) (projections not included) |
53.5×142.7×39.5 mm |
|||
| Weight (approx.) |
400g |
|||
IC-F3263DT/DS |
IC-F4263DT/DS |
||
|---|---|---|---|
| RF output power (at 7.5V DC) |
5W, 2W, 1W
(Hi, L2, L1) |
||
| Spurious emissions |
78dB typ.
|
||
| Frequency stability |
±1.0ppm
|
||
| Audio harmonic distortion |
1.5% typ. (AF 1kHz 40% deviation)
|
||
| FM Hum and Noise |
48/43dB typ. (W/N)
|
46/40dB typ. (W/N)
|
|
| FSK error |
2.0% typ.
|
||
IC-F3263DT/DS |
IC-F4263DT/DS |
||
|---|---|---|---|
| Sensitivity | Analogue |
0.23μV typ. (at 12dB SINAD)
|
|
| Digital |
0.20μV typ. (at 5% BER)
|
||
| Adjacent channel selectivity |
78/68/60dB typ. (W/N/D)
|
75/68/60dB typ. (W/N/D)
|
|
| Spurious response rejection |
76dB typ.
|
||
| Intermodulation rejection |
75/75/66dB typ. (Wide, narrow, digital)
|
||
| AF output power (at 5% distortion) |
800mW typ. (Internal SP, 12Ω load)
1000mW typ. (External SP, 8Ω load) |
||
IC-F3263DT/DS |
IC-F4263DT/DS |
||
|---|---|---|---|
| Receiver channels |
12 channels
|
||
| Time to first fix (cold start) |
36 seconds typ. (at open sky)
|
||
| Horizontal accuracy |
5m (at open sky)
|
||
