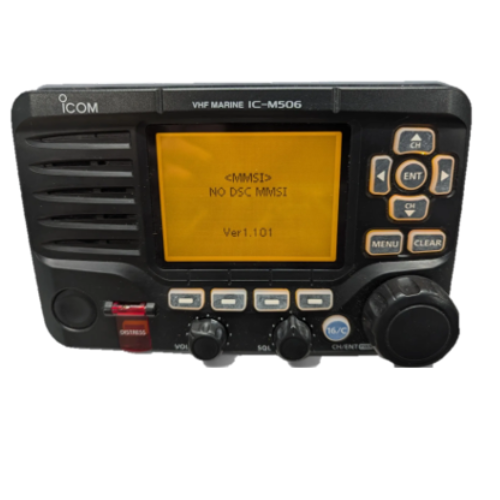

Fitur Icom ic M506
Radio Marine icom ic m506 memiliki fitur yang lengkap dan memiliki frekuensi VHF, penerimaan radio icom m506 sudah terintegrasi konektivitas NMEA 2000 AIS, Ring Marine Icom M-506 di desain dengan fitur yang sudah dikemas termasuk perekam suara dan peredam kebisingan yang aktif dan teknologi tambahan fitur antarmuka dot matrix yang memudahkan digunakan.
Spesifikasi ICOM IC-506
| |
IC-M506
|
| Frequency range |
Tx |
156.025–157.425MHz |
| Rx |
156.050–163.275MHz |
| CH70 |
156.525MHz |
| AIS1, 2 |
161.975, 162.025MHz |
| Usable channels |
USA, CAN, INT, WX channels |
| Type of emission |
16K0G3E (FM), 16K0G2B (DSC) |
| Power supply requirement |
13.8V DC (11.7–15.9V DC) |
Current drain
(at 13.8V DC) |
Tx 25W output |
5.5A |
| Rx AF Max |
External SP |
5.0A (RX hailer ON) |
| Internal SP |
1.5A |
| Operating temperature range |
−20°C to +60°C;
−4°F to +140°F |
| Antenna impedance |
50Ω (SO-239) |
| Weight (approx.) |
1400g; 3.09lb |
Transmitter
| |
IC-M506
|
| Output power (at 13.8V DC) |
25W, 1W |
| Max. frequency deviation |
±5.0kHz |
| Frequency tolerance |
±10ppm |
| Spurious emissions |
Less than −70dBc (at 25W) |
| Residual modulation |
More than 40dB |
| Adjacent channel power |
More than 70dB |
Receiver
| |
IC-M506
|
Intermediate frequency
CH70 |
1st 30.15MHz, 2nd 450kHz
1st 21.7MHz, 2nd 450kHz |
| Sensitivity (at 12dB SINAD) |
0.22μV typical |
Adjacent channel
selectivity CH70 (1% BER) |
More than 75dB
More than 73dBμ emf |
Spurious response
CH70 (1% BER) |
More than 75dB
More than 73dBμ emf |
Intermodulation
CH70 (1% BER) |
More than 75dB
More than 68dBμ emf |
| Hum and noise |
More than 40dB |
Audio output power
(at 10% distortion) |
More than 15W with a 4Ω
RX speaker |
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard |
MIL-810 G
Method, Proc. |
| Low Pressure Storage |
500.5 I |
| Low Pressure Operation |
500.5 II |
| High Temperature Storage |
501.5 I |
| High Temperature Operation |
501.5 II |
| Low Temperature Storage |
502.5 I |
| Low Temperature Operation |
502.5 II |
| Temperature Shock |
503.5 I-C |
| Solar Radiation |
505.5 I |
| Rain Blowing |
506.5 I |
| Humidity |
507.5 II |
| Salt Fog |
509.5 |
| Dust Blowing |
510.5 I |
| Water Immersion |
512.5 I |
| Vibration |
514.6 I |
| Shock Functional |
516.6 I |
| Shock Transit Drop |
516.6 IV |
Also meets equicalent MIL-STD-810-C, -D, -E and -G.
Applicable IP Rating and environmental test.
| Ingress Protection Standard |
| Water |
IPX8 (1m depth water for 60 minutes) |
UNTUK HARGA KAMI AKAN BERIKAN MELALUI PENAWARAN DENGAN HARGA TERBARU DAN HARGA TERBAIK.
Silahkan Hubungi Kami Via Email / Telp Kami Siap Membantu Keperluan Anda :
Telp : (021) 5694 2888, 5696 8845
Telp : (021) 5696 8763 HP : 081586838888
By : Alnindo Group
Email : alnindo@yahoo.com atau alnindomarketing@yahoo.com
