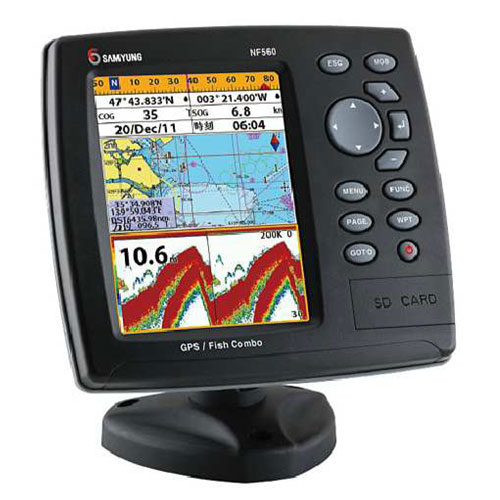

Samyung NF560

The Samyung NF560 combines GPS/Chartplotter and Fishfinder with a ultra-bright 5.6'' high resolution TFT LCD display and excellent performance.

Built-in specific area free Electronic Charts. Samyung NF560 Features

•  Waterproof to IPX7 specifications

•  User-friendly operation

• 4 split screens (Chart, Data, Highway, Fish-finder)

• Adjustable bracket easily attaches and detaches

•  NMEA2000 interface (Data repeater, fuel control)

•  Using dual frequency (50/200Khz) for detection of small or individual fish

•  Clearly shows fish targets close to the seabed utilizing Split zoom/Split bottom (Output: 600W, Max. depth: 600M)

Specifications

•  Size : 164 mm(H) × 183 mm(W) × 74 mm(D)

• Display : 5.6" diagonal, TFT color, 480 × 640 pixels

• Supply voltage : 10 to 34 V DC

• Supply current : 13.8 V, 0.9A min - no backlighting, 2A max- full backlighting

• Operating temp : -10^oC to 50^oC

• Alarms : Arrival radius, anchor, XTE, danger, too shallow, too deep, fish, temperature, temperature rate, low battery, low fuel(optional), loss of DGPS fix, radar guard zone, dangerous AIS vessels.

• Chart card : NAVIONICS® GOLD SD Card

• User card : SD Card

• Waypoints : Up to 5000, with default or userdefined alphanumeric names up to eight characters.

•  Routes : 100 Routes, with up to 100 points each

• Tracks : By time or distance, 10 track of 5000 points

• Chart datums : 216 Chart datums (see next page) One user-defined map shift.

• Chart scale : 0.2 to 500 nm for chart (chart dependent) down to 0.01 nm in plotter mode.

• NMEA : NMEA 0183 4800, 9600, 38400 baud, NMEA 2000

• Size : 164 mm(H) × 183 mm(W) × 74 mm(D)

• Display : 5.6" diagonal, TFT color, 480 × 640 pixels

• Supply voltage : 10 to 34 V DC

• Supply current : 13.8 V, 0.9A min - no backlighting, 2A max- full backlighting

• Operating temp : -10^oC to 50^oC

•  Alarms : Arrival radius, anchor, XTE, danger, too shallow, too deep, fish, temperature, temperature rate, low battery,

•   low fuel(optional), loss of DGPS fix, radar guard zone, dangerous AIS vessels.

• Chart card : NAVIONICS® GOLD SD Card

• User card : SD Card

• Waypoints : Up to 5000, with default or userdefined alphanumeric names up to eight characters.

•  Routes : 100 Routes, with up to 100 points each Tracks : By time or distance, 10 track of 5000 points

• Chart datums : 216 Chart datums (see next page) One user-defined map shift.

• Chart scale : 0.2 to 500 nm for chart (chart dependent) down to 0.01 nm in plotter mode.

• NMEA : NMEA 0183 4800, 9600, 38400 baud, NMEA 2000

• Depth range : 0m to 1.500m

• Sonar output : Up to 600W RMS Daul frequency : 50/200kHz

• Temperature : Range 0^oC to 37.7^oC Resolution oof 0.1^oC Unit
