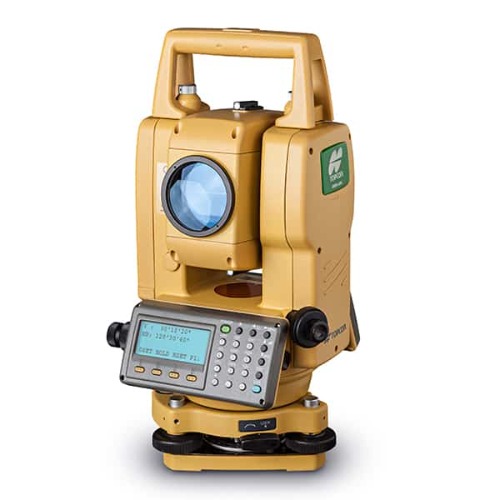

Topcon GTS 255 Telah hadir Total Station legendaris pengganti Topcon GTS 235 dengan kualitas terjamin dan harga ekonomis. TOPCON GTS 255 deilngkapi dengan Dual Axis Tilt Sensor Total Station. kemampuan jangkuan jarak 1 prisma dapat mengukur hingga 2,000 M. Accuracy jarak juga sangat tinggi ± 2mm+2ppm, Angle accuracy : 5” dengan Internal memory yamg sangat lega yaitu 24,000 Points, kemampuan Battery life time : 9 jam dan dilengkapi dengan dua batere.
Spesifikasi Teknis :
Telescope
Length : 150 Millimeters
Objective Lens Diameter : 45mm (EDM:50mm)
Magnification : 30x
Image : Erect
Field of View : 1°30
Resolve Power : 3 "
Min. Focus Distance : 1.3 meters
Measurement Range
1 Prism : 6560 ft, 2000 meters
3 Prism : 8856 ft, 2700 meters
Measuring Accuracy
Prism Mode : ±(2mm + 2ppm x D)m.s.e. fine, N/A
Measurement Time : 1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A
Angle Measurement
Method : Absolute Reading
Detection : 2 horizontal, 1 vertical
Minimum reading : 5”/1”, 1/5 mgon
Tilt Correction
Type : Automatic Vertical and Horizontal compensator
Method : Liquid surface reflective profile sensor reading type
Compensating Range : ±3''
Correction Unit : 1 arc sec, N/A
Computer Unit
Display : 2 screen, dot matrix graphic LCD display
Power
Approximate battery life : 9 hours including distance measurement , 40 Angle measurement only
Durability
Protection against water and dust : IP54
Temperature : -20 to 50 degrees C (-4 to 122 degree F)
Weight : Instrument 4.9KG (10.8lb)
;
UNTUK HARGA KAMI AKAN BERIKAN MELALUI PENAWARAN DENGAN HARGA TERBARU DAN HARGA TERBAIK.
Silahkan Hubungi Kami Via Email / Telp Kami Siap Membantu Keperluan Anda :
Telp : (021) 5694 2888, 5696 8845
Telp : (021) 5696 8763 HP : 081586838888
By: Alnindo Group
Email : alnindo@yahoo.com atau alnindomarketing@yahoo.com
