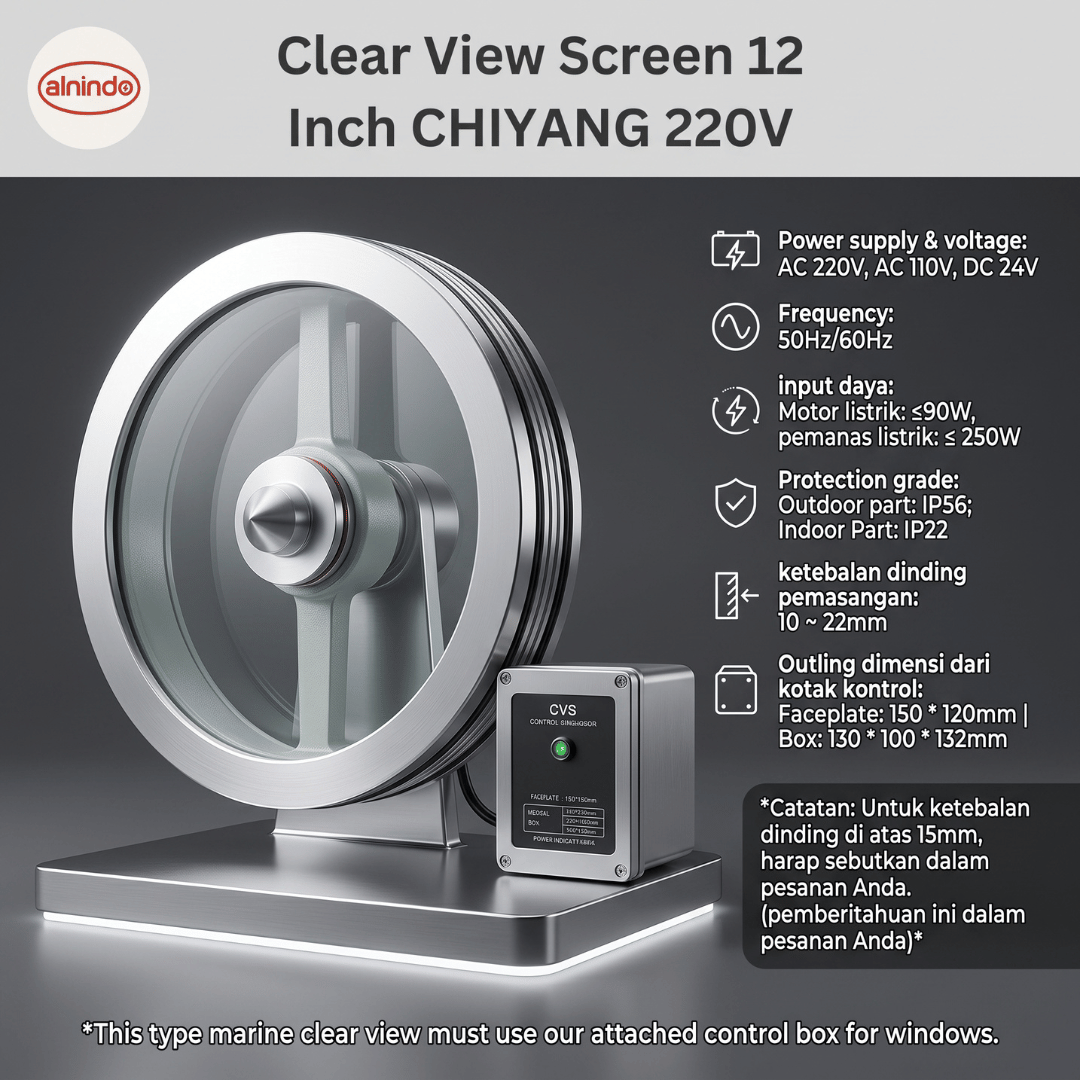

The Clear View Screen 12 Inch CHIYANG 220V is a marine-grade rotating glass screen designed to maintain clear visibility through windows during rain, snow, sea spray, and extreme weather conditions. This device is ideal for installation on bridge windows of ships, workboats, fishing vessels, tugboats, cargo ships, and various other transportation and industrial applications.
A Clear View Screen (also called a rotating window or clearview screen) is a circular tempered glass disc mounted on a ship's or industrial vehicle's window. It is driven by an electric motor that rotates the glass at high speed.
When the screen spins, centrifugal force pushes rain, waves, spray, snow, dew, and dirt away from the glass surface, keeping the central viewing area clear for the operator or helmsman.
The CHIYANG 12 Inch 220V model is built for outdoor and heavy-duty environments, featuring robust construction, corrosion-resistant materials, and protection ratings suitable for marine and industrial use.
Marine weather can change rapidly. Heavy rain, strong winds, sea spray, fog, and high waves can severely reduce visibility from the ship's bridge. Standard wipers often struggle to clean glass effectively, especially when salt residue or continuous seawater spray is present.
A Clear View Screen creates a dedicated clean viewing zone on the window, supporting safer and more comfortable vessel operation, particularly in poor weather.
Helps maintain helmsman visibility during rain and sea spray
Reduces visual obstruction from water, salt, and dirt on the glass
Supports safer navigation and maneuvering
Suitable for vessels operating at sea, on rivers, in ports, and industrial areas
Minimizes the need for manual window cleaning
Provides a reliable clear-view solution in harsh environments
The CHIYANG Clear View Screen uses a circular tempered glass disc rotated by an electric motor. When activated, the screen reaches maximum RPM in about 25 seconds.
This rotation generates centrifugal force that throws off rain, snow, spray, and dirt from the glass surface. Water and contaminants are pushed from the center toward the outer edge, keeping the central viewing area cleaner and clearer.
The system also helps reduce staining or residue from saltwater and dirt, making it ideal for vessels frequently exposed to humid, salty, rainy, and unpredictable weather.
Designed to provide clearer visibility in various weather conditions
Uses strong tempered glass suitable for heavy-duty use
Reaches maximum rotation speed in approximately 25 seconds
Uses centrifugal force to remove rain, snow, spray, and dirt from the screen surface
Robust construction for storm conditions and heavy-duty environments
Corrosion-resistant materials on all critical parts
Outdoor protection rating: IP56
Indoor protection rating: IP22
Relatively quick and easy installation for various window types
Requires minimal maintenance when installed and used correctly
Suitable for ships, locomotives, cranes, and other industrial vehicles or equipment
Available for AC 220V, AC 110V, and DC 24V power supplies
Includes a dedicated control box designed specifically for marine Clear View Screen systems
The Clear View Screen 12 Inch CHIYANG can be used across many sectors requiring high visibility in challenging environments. It is especially recommended for ships and industrial applications exposed to rain, water, wind, or corrosive conditions.
Typical Applications Include:
Cargo and freight ships
Fishing vessels
Tugboats
Patrol boats
Passenger ships
Workboats and project vessels
Supply vessels
Tankers
Port-area vessels
River and sea-going ships
Locomotives
Industrial cranes
Control rooms in open work areas
Special vehicles in construction or mining projects
Industrial equipment requiring a consistently clean viewing area
Power supply options: AC 220V, AC 110V, DC 24V
Frequency: 50 Hz / 60 Hz
Motor input power: Max 90 W
Electric heater power: Max 250 W
The heater helps in high-humidity or dew-prone conditions
Outdoor: IP56 (dust and water spray protected)
Indoor: IP22
Recommended mounting wall/glass thickness: 10–22 mm
If thickness exceeds 15 mm, inform the supplier during ordering so the product can be prepared accordingly
Control box faceplate: approx. 150 × 120 mm
Control box size: approx. 130 × 100 × 132 mm
The marine Clear View Screen must use the included control box for proper operation
The control box is a critical component of the Clear View Screen system. It regulates and supports the operation of the electric motor and heater.
Using the supplied control box is strongly recommended because it is specifically matched to the marine Clear View Screen system. Using an incompatible control box may affect performance, rotation stability, power requirements, and electrical safety.
Installation should be carried out by a technician familiar with marine or industrial electrical systems. Proper installation helps ensure optimal, safe, and long-lasting performance.
Confirm the required clear-view screen size
Check the wall or glass thickness at the installation site
Inform the supplier if installation thickness exceeds 15 mm
Decide on the power supply: AC 220V, AC 110V, or DC 24V
Ensure sufficient space for the control box installation
Use the included control box supplied with the product
Consult with an experienced ship or electrical technician regarding installation
Ensure the installation location matches the operator's or helmsman's viewing needs
What is the main function of a Clear View Screen?
It helps keep the view through windows clearer during rain, sea spray, snow, dew, or dirt by rotating the glass to generate centrifugal force that removes water and contaminants.
Is the CHIYANG 12 Inch Clear View Screen suitable for ships?
Yes. It is designed for marine applications and is suitable for cargo ships, fishing vessels, tugboats, patrol boats, workboats, passenger ships, and vessels operating in ports or open waters.
What voltages are available?
Available in AC 220V, AC 110V, and DC 24V. Choose the voltage matching your vessel's or equipment's electrical system.
What is the power consumption?
Motor: Max 90 W
Heater: Max 250 W
Is this product weather-resistant?
Yes. It is designed for harsh weather and marine environments. Outdoor rating: IP56; indoor rating: IP22.
Is the glass easily breakable?
It uses tempered glass designed for operational strength. However, correct installation and usage are essential to maintain performance and safety.
What wall or glass thickness can be installed?
Recommended thickness: 10–22 mm. If over 15 mm, inform the supplier during ordering for proper adaptation.
Must the Clear View Screen use the included control box?
Yes. This marine Clear View Screen type must use the supplied control box, which is designed for optimal window-screen operation.
Can Clear View Screens be used on cranes and locomotives?
Yes. Besides ships, they are also used on locomotives, cranes, control rooms, and other industrial applications requiring clear visibility in harsh conditions.
Is installation difficult?
Installation is designed to be relatively quick and easy, but for safety and optimal results, it should be performed by a technician experienced in marine or industrial electrical installations.
