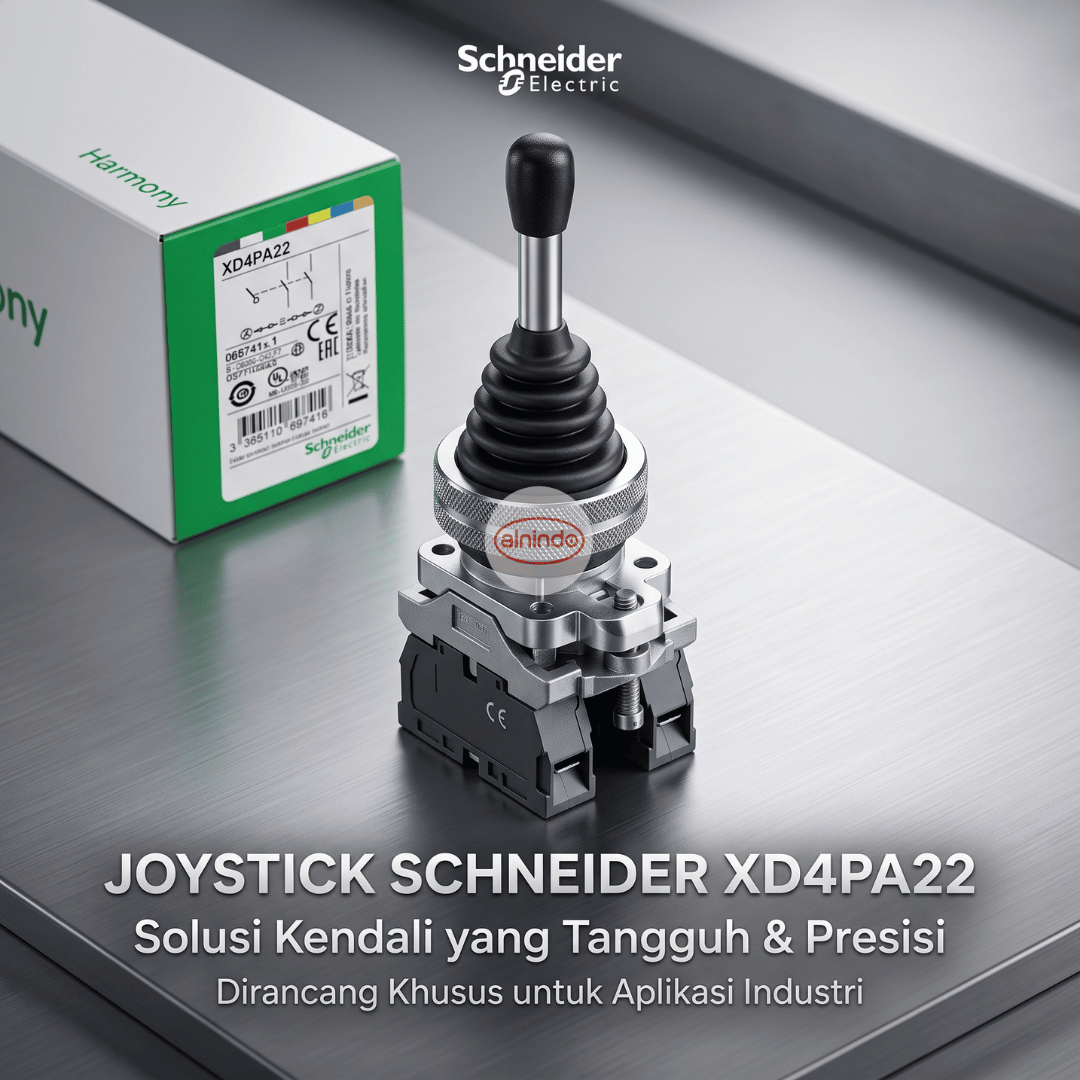

The Schneider XD4PA22 joystick is an industrial control device designed to deliver precise, responsive, and reliable operation across a wide range of control systems. With its sturdy metal construction, IP66 protection, and spring-return mechanism, this joystick is ideal for use in machine panels, automation systems, material-handling equipment, and manufacturing applications operating in heavy-duty environments.
This product is a Schneider Electric joystick controller from the Harmony XDA line, compatible with control systems requiring a 22 mm mounting diameter. The XD4PA22 offers two-way control with a neutral center position, allowing operators to control machine movement more safely and intuitively.
Getting to Know the Schneider Telemecanique XD4PA22
Schneider Electric, widely known through the Telemecanique brand in industrial automation solutions, presents the XD4PA22 as a panel-mount joystick for professional use. This component has two directions of operation and three positions in total: the first direction, the neutral position, and the second direction.
When the lever is released, the spring mechanism automatically returns the joystick to the center or zero position. This characteristic is essential in applications that require motion commands to stop immediately once the operator stops moving the lever—for example, in controlling conveyor direction, hoists, actuators, production machinery, or lifting systems.
With a 54 mm operating lever, users get a comfortable grip and clear movement feedback during control. This system helps improve operator precision, particularly when machine movement must be controlled manually and in stages.
Sturdy Construction for Industrial Environments
One of the main advantages of the Schneider XD4PA22 joystick is the quality of its construction. The product uses a front bezel or ring made of chromium-plated metal, providing a professional appearance while also offering better protection against corrosion and repeated use.
The mounting collar is made from Zamak material. This material supports strong mounting on control panels and helps keep the joystick stable during use. The combination of the metal bezel and Zamak collar makes the XD4PA22 suitable for applications requiring panel components with high mechanical resistance.
In addition to being strong, the joystick is also relatively lightweight, at approximately 0.116 kg. This weight makes it easy to integrate into control panels without compromising the robustness of the device's construction
Accurate Two-Way Control
The XD4PA22 is designed with two directions of movement and one normally open (NO) contact in each direction. When the operator moves the lever in either direction, the NO contact in that direction activates to send a signal to the control circuit.
This configuration makes the XD4PA22 suitable for a variety of simple yet important control needs, such as:
Moving machinery forward and backward.
Controlling up and down on hoist or lifting systems.
Controlling the opening and closing of actuators.
Providing left and right commands on mechanical devices.
Operating two-way conveyors.
Controlling motor movement via relays, contactors, PLCs, or digital inputs in automation systems.
Serving as a manual control device on industrial machine panels.
The contacts use a slow-break mechanism, a standard contact mechanism that operates stably in general control applications. The contact material, a silver-nickel alloy (Ag/Ni), supports good electrical conductivity and resistance to wear from repeated work cycles.
Spring-Return Feature for Operational Safety
The spring-return-to-zero feature is one of the important characteristics of the XD4PA22 joystick. After the lever is released, the internal spring automatically returns it to the neutral position.
In industrial practice, this feature offers several benefits:
Reduces the risk of the machine continuing to move when the operator no longer issues a command.
Helps create more controlled operation.
Makes it easier for operators to perform momentary control movements.
Improves system responsiveness to changes in direction.
Supports the concept of operational safety on manual control panels.
As an illustration, in a forward-reverse motor application, the lever can be pressed upward to issue a forward command and downward for a reverse command. When the operator releases the lever, the joystick returns to the neutral position so the command signal stops being sent. Of course, the overall safety design must still include interlocks, motor protection, emergency stop, and control systems appropriate to the machine's needs.
Practical Panel Installation
The Schneider XD4PA22 joystick uses the standard 22 mm mounting diameter, so it can be installed on many types of industrial control panels. This size is commonly used for operator devices such as push buttons, selector switches, pilot lamps, and emergency stops.
The unit is designed to be mounted on panels with a thickness of approximately 1 to 6 mm. For proper installation, the product documentation recommends a panel hole of approximately Ø22.5 mm, with certain tolerances according to installation requirements.1
The terminals used are screw clamp terminals. These terminals can accept cables up to 2 x 1.5 mm² when the cable uses ferrules in accordance with EN 60947-1. The screw terminal system provides a stable connection and makes it easy for technicians to install, inspect, or replace components.
During installation, make sure of the following:
The panel is de-energized before installation begins.
The panel hole diameter matches the product specifications.
The panel thickness is within the recommended range.
Cables are tightened with the appropriate torque.
The control circuit is equipped with protection such as fuses, MCBs, protection relays, or other protective devices as per the system design.
The joystick direction functions are tested before the machine is operated at full capacity.
IP66 Protection for Heavy-Duty Conditions
In industrial environments, panel control devices are often exposed to dust, moisture, liquid splashes, and even cleaning processes. The Schneider XD4PA22 has an IP66 degree of protection in accordance with IEC 60529, which means the device has high protection against dust ingress and is resistant to pressurized water jets from all directions.
The product is also noted as being resistant to high-pressure washing of up to 7,000,000 Pa at 55°C from a distance of 0.1 meters. This capability supports its use in work areas that require routine cleaning, provided installation and operating conditions follow the product's technical requirements.
With this protection, the XD4PA22 can be considered for various sectors, including:
Manufacturing industry.
Factory automation.
Packaging systems.
Food and beverage industry.
Conveyor systems.
Workshops and production machinery.
Material handling.
Machine control panels.
Automotive industry.
General commercial and industrial applications.
The product's operating temperature range is approximately -25°C to 70°C, so the joystick can work in a variety of industrial ambient temperature conditions.
Durability of Up to 1 Million Cycles
For industrial applications, mechanical service life is one of the important considerations before selecting a control device. The Schneider XD4PA22 is designed with mechanical durability of up to 1,000,000 cycles. This shows that the joystick can be used in long-term, repeated operation when applied according to the technical specifications and recommended working conditions.
The documentation also states electrical endurance of up to 1,000,000 cycles under certain utilization categories, such as AC-15, with specified operating voltage and current values. Therefore, the selection of the load circuit still needs attention, especially when the joystick is used to control inductive loads such as contactor coils, relays, solenoids, or automation system inputs.
For short-circuit protection, the product specifications list the use of a type gG 10 A cartridge fuse in accordance with EN/IEC 60947-5-1.1
Meeting International Standards
The XD4PA22 joystick is designed in reference to relevant international standards for low-voltage control devices. Some of the standards listed include EN/IEC 60947-1 and EN/IEC 60947-5-1, which relate to low-voltage switchgear and controlgear, as well as control circuit devices.
The product is also listed as complying with other standards, including EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C 4520, UL 508, and CSA C22.2 No. 14. This compliance adds value for projects that require automation components with clear specifications and documentation.
Why Choose the XD4PA22 Joystick?
The Schneider XD4PA22 offers a combination of compact design, robust materials, precise operation, and durability for industrial needs. This product is the right choice when you need a two-way joystick with automatic return to the center position.
Some reasons to choose the XD4PA22 include:
Standard 22 mm mounting diameter for easy panel integration.
Two-way operation with three positions: first direction, neutral, and second direction.
Spring-return mechanism that automatically returns to the zero position.
Comfortable 54 mm operating lever.
One NO contact for each direction of movement.
Reliable Ag/Ni silver-nickel alloy contacts for control needs.
Chromium-plated metal bezel and strong Zamak collar.
Screw terminals for secure cable connection.
IP66 protection against dust and pressurized water spray.
Mechanical durability of up to 1 million cycles.
Complies with relevant international industry standards.
Order the Schneider Joystick XD4PA22
Need the Schneider Telemecanique XD4PA22 joystick for control panels, production machinery, industrial automation, or replacement of control system components? Be sure to choose the specifications that match your electrical design, load type, and application's working environment.
For orders, product consultations, and special pricing information, contact WhatsApp 081586838888.
You can also visit Alnindo's official website at alnindo.com or alnindo.id.
Our address:
Perkantoran, Jl. Taman Palem Mutiara No. 1 Blok A18, RT.7/RW.14, Cengkareng Timur, Kecamatan Cengkareng, Kota Jakarta Barat, Daerah Khusus Ibukota Jakarta 11730.
FAQ
What is the Schneider XD4PA22?
The Schneider XD4PA22 is an industrial joystick controller with a 22 mm mounting diameter, two directions of operation, a spring-return mechanism to the center position, and one NO contact for each direction. This product is part of the Harmony XDA line.
Does the XD4PA22 joystick automatically return to the center position?
Yes. The XD4PA22 has a spring-return-to-zero feature. After the lever is released, it automatically returns to the neutral or center position.
How long is the lever of the Schneider XD4PA22 joystick?
This joystick uses an operating lever approximately 54 mm long. This length provides comfortable operation and helps the operator achieve clearer movement control.
What is the panel hole diameter for the XD4PA22?
The nominal mounting diameter of the XD4PA22 is 22 mm. The product documentation lists a recommended panel hole of approximately Ø22.5 mm for installation.
Is the XD4PA22 water- and dust-resistant?
Yes. This product features IP66 protection per IEC 60529, providing protection against dust and pressurized water spray.
What applications is the Schneider XD4PA22 joystick suitable for?
The XD4PA22 is suitable for machine panels, industrial automation, conveyors, hoists, actuators, forward-reverse motor commands, material-handling systems, and other two-way control applications. Final suitability still needs to consider circuit design, current-voltage ratings, load type, and machine safety requirements.
How long is the mechanical life of the XD4PA22 joystick?
The Schneider XD4PA22 has mechanical durability of up to 1,000,000 cycles. This value supports long-term use in applications with high operating frequency.
