Looking for an accurate, easy-to-read, and reliable marine wind instrument for your vessel? The Original Clipper Wind Nasa V2 is the perfect choice to support your marine navigation needs. This system is designed to clearly display wind direction and speed, helping sailors make better decisions while at sea.
Featuring a large display, flexible indicator options, and NMEA 0183 compatibility, the Clipper Wind Nasa V2 is suitable for various sailing vessels and workboats.

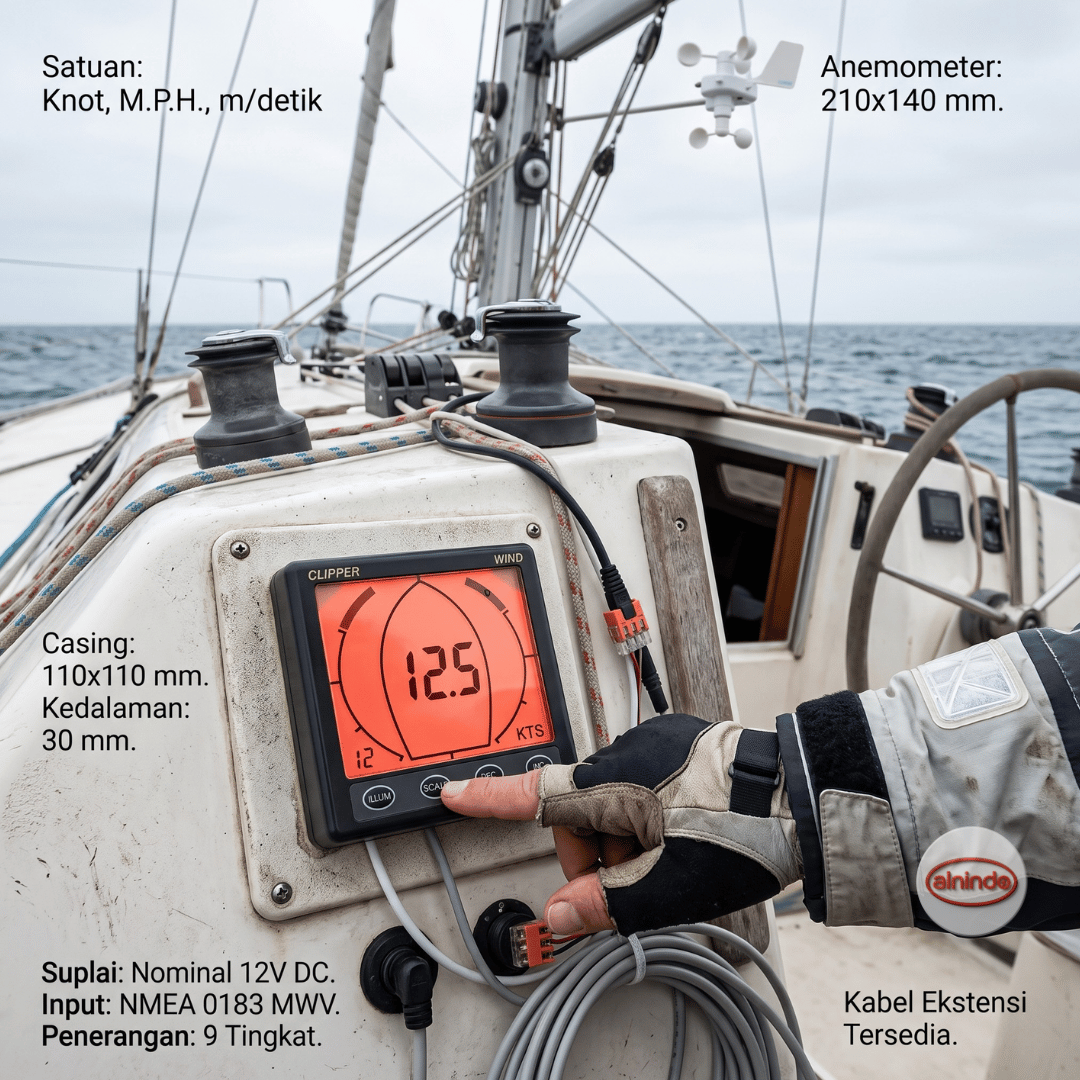

The Clipper Wind system features a square 110 × 110 mm casing, similar to other instruments in the Clipper product range. This compact design makes it easy to install on a vessel’s navigation panel without taking up too much space.
The display is large and clear, with 60 indicator segments. It can show the full 360-degree wind direction, ensuring that wind information remains easy to monitor under various lighting conditions.
The Original Clipper Wind Nasa V2 offers several wind direction display styles that can be selected according to the user’s preferences, including:
A single-segment pointer for a simple and precise display.
A multi-segment pointer for clearer wind direction visibility.
A “windex”-style indicator for a display familiar to sailors.
This display flexibility allows users to view wind information in the most convenient way while at sea.
The Clipper Wind can display wind speed in several units, including:
Knots.
M.P.H. or miles per hour.
Meters per second.
These unit options make it easy for users to adjust the readings according to navigation standards and the vessel’s operational practices.
The latest Clipper Wind Nasa V2 masthead unit is equipped with an NMEA 0183 output using MWV data sentences. This feature allows the system to be integrated with other compatible marine navigation equipment.
The product also includes a 20-meter cable, making installation between the masthead unit and the display more convenient. Extension cables are also available to meet your vessel’s installation requirements.
Each Clipper Wind system package includes:
Display unit.
Masthead unit with cable.
Mounting block or bracket.
With these components included, you can prepare and install your vessel’s wind indicator system more efficiently.
The Original Clipper Wind Nasa V2 specifications are as follows:
Supply voltage: 12 V DC nominal.
Power consumption: 50 mA+.
Display illumination consumption: Maximum 25 mA.
NMEA 0183 input: MWV data sentence.
Display backlight: 9 brightness levels.
Display casing size: 110 × 110 mm.
Depth behind the panel: 30 mm.
Anemometer head size: 210 × 140 mm.
Masthead unit cable: 20 meters.
Extension cable: Available.
Get the Original Clipper Wind Nasa V2 to support your vessel’s navigation and wind-monitoring system. Contact us via WhatsApp at 081586838888 for special pricing, product availability, and installation requirements.
