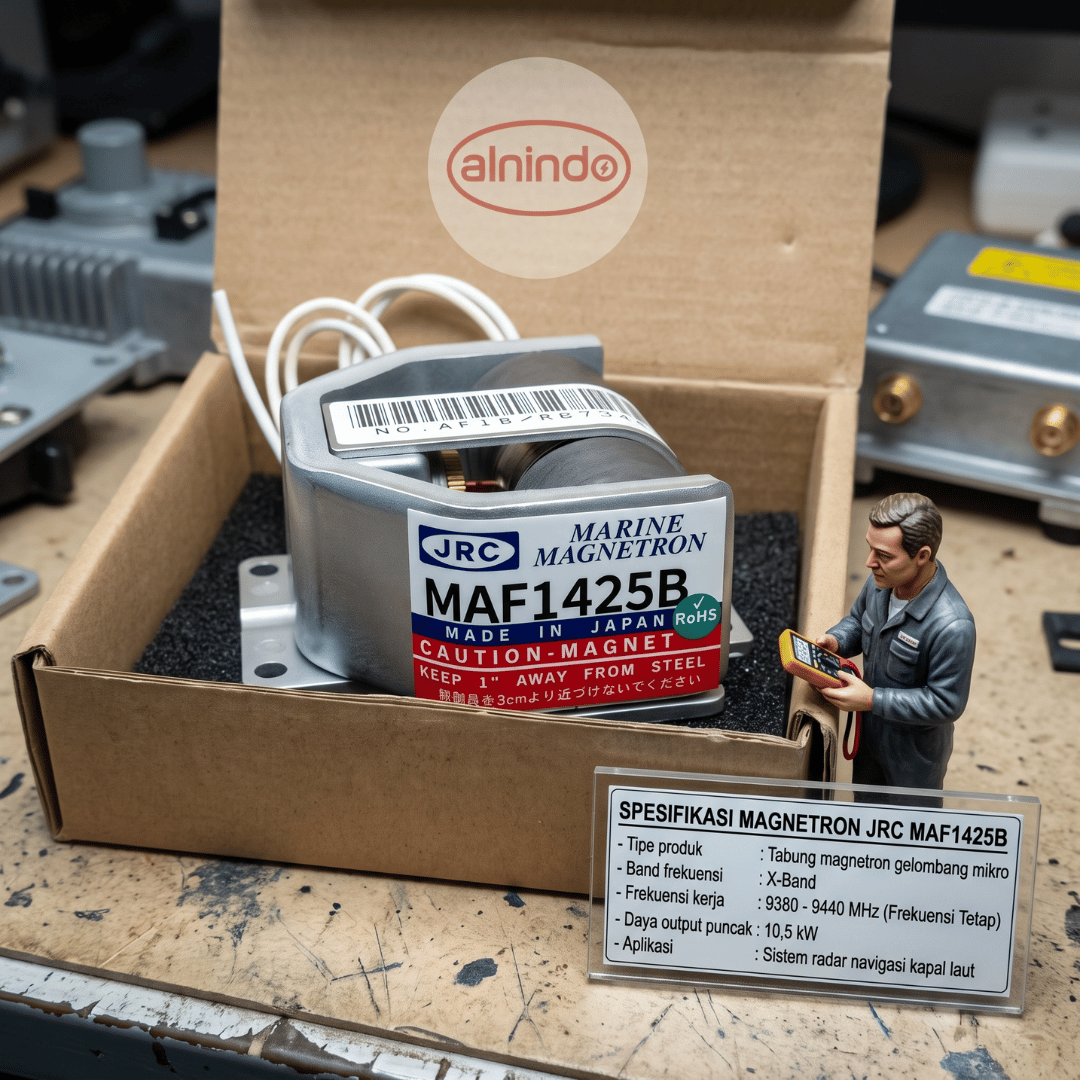

The JRC MAF1425B magnetron is an X-Band microwave magnetron tube component used in maritime radar systems. With a peak output power of up to 10.5 kW, this magnetron generates high-power electromagnetic signals to transmit radar pulses and assist vessel navigation under various sailing conditions.
In ship radar systems, magnetron quality significantly affects the radar's ability to detect other vessels, coastlines, buoys, obstacles, and objects around shipping lanes. Therefore, using the JRC MAF1425B magnetron according to specifications is essential for maintaining navigation radar performance.
The JRC MAF1425B magnetron has the following key specifications:
Product type: Microwave magnetron tube
Frequency band: X-Band
Operating frequency: 9380 to 9440 MHz (fixed frequency)
Peak output power: 10.5 kW
Primary application: Marine vessel navigation radar systems
With a frequency range of 9380–9440 MHz, this magnetron supports pulse transmission requirements for X-Band maritime radar. The 10.5 kW peak power helps the radar generate sufficiently strong emissions to effectively detect objects around the vessel.
The primary function of the JRC MAF1425B magnetron is to generate microwave energy that is then transmitted by the radar antenna in the form of pulses. These pulses travel toward the area around the vessel, reflect when hitting objects, and return as reflection signals processed by the radar.
In general, magnetrons in maritime radar systems function to:
Generate X-Band frequency electromagnetic waves
Transmit high-power radar pulses through the ship's radar antenna
Assist radar in detecting targets such as vessels, landmasses, buoys, docks, and other navigation objects
Support observation of conditions around the vessel while sailing, especially at night, in rain, fog, or limited visibility
Maintain radar display performance so targets appear clearer and more responsive
Without an optimally functioning magnetron, radar may experience reduced transmission capability. As a result, targets that should appear clearly may appear weak, diminished, or difficult to detect.
The JRC MAF1425B magnetron is used as a replacement component or spare part in ship navigation radar systems using compatible X-Band specifications. This product is relevant for radar maintenance needs on merchant vessels, passenger ships, workboats, tugboats, fishing vessels, and other maritime fleets.
In vessel operations, radar is a critical device for supporting navigation safety. Radar helps crew members monitor the surrounding environment, determine relative target positions, and anticipate potential hazards in shipping lanes.
Proper magnetron use helps ensure the radar system remains capable of transmitting pulses stably. This is important so that target information on the radar screen remains accurate and easily readable by operators.
Magnetrons are components with a limited service life. After use over a certain period, their transmission power may decrease. One of the most common signs is that the radar display or returns appear increasingly weak.
Several symptoms indicating the radar magnetron needs inspection or replacement include:
Target display on the radar screen weakens compared to normal conditions
Object detection range becomes shorter
Small targets are difficult to see even after radar settings are adjusted
Tuning bar indicator drops or fails to reach optimal conditions
Radar requires higher gain or tuning settings to display targets
Radar performance becomes unstable during navigation use
If these symptoms appear, have the system inspected by a technician familiar with maritime radar systems. Magnetron replacement should be performed using components matching the radar's type, frequency, and power requirements so the device can operate safely and optimally.
Regular radar system maintenance helps extend component lifespan and maintain vessel navigation reliability. Several steps that can be taken include:
Conduct routine radar performance inspections
Monitor changes in image quality or target strength on the radar screen
Track tuning indicators and radar response during operation
Ensure electrical installations and radar cooling systems are in good condition
Use spare parts matching radar specifications
Entrust magnetron installation and testing to experienced technicians
The JRC MAF1425B magnetron is an important component choice for supporting X-Band maritime radar system performance. With a fixed frequency of 9380 to 9440 MHz and 10.5 kW peak output power, this magnetron functions to generate high-power radar pulses to help vessels detect objects in their vicinity.
Need a JRC MAF1425B magnetron for your vessel's radar needs? Contact WhatsApp 081586838888 for product availability information and special pricing.
Visit official websites:
Office address:
Perkantoran, Jl. Taman Palem Mutiara No. 1 Blok A18, RT.7/RW.14, Cengkareng Timur, Kecamatan Cengkareng, Kota Jakarta Barat, DKI Jakarta 11730.
What is the function of the JRC MAF1425B magnetron?
The JRC MAF1425B magnetron functions to generate high-power microwaves transmitted as radar pulses. These pulses help ship radar detect objects around the sailing area.
What radar is the JRC MAF1425B magnetron used for?
This component is used for marine vessel navigation radar systems employing X-Band radar technology and requiring a magnetron with 9380 to 9440 MHz frequency and 10.5 kW peak output power.
What are the signs that a ship radar magnetron needs replacement?
Signs may include weakened radar targets, reduced detection range, dropped tuning bar, unclear radar display, or radar no longer providing stable performance as before.
Does a worn magnetron affect radar display?
Yes. A magnetron beginning to wear may produce lower transmission power. This condition causes target reflection signals to weaken, making objects on the radar screen less clear or difficult to detect.
Must the JRC MAF1425B magnetron be installed by a technician?
This is recommended. The magnetron is a high-voltage component and critical part of the radar system. Installation, testing, and adjustment should be performed by experienced technicians to ensure safety and proper radar operation.
Where can I purchase the JRC MAF1425B magnetron?
For ordering and special pricing information, contact WhatsApp 081586838888 or visit alnindo.com and alnindo.id.
