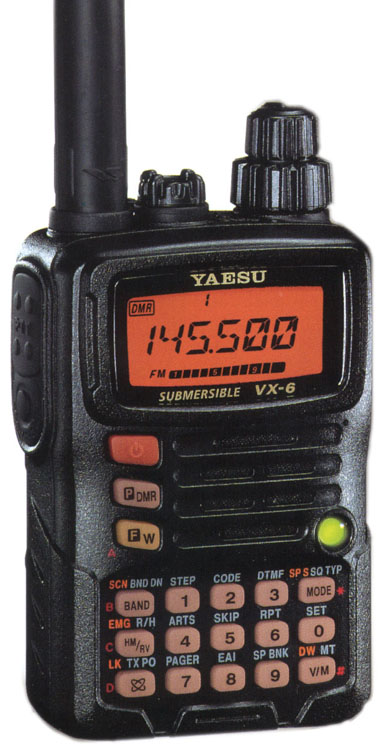

Product Detail HT Yaesu VX 6R

• Frequency Ranges RX 0.5 - 1.8 MHz (BC Band),
• (USA Version) 1.8 - 30 MHz (SW Band),
• 30 - 76(59) MHz (50 MHz HAM Band),
• 76(59) - 108 MHz (FM Band),
• 108 - 137 MHz (Air Band),
• 137 - 174 MHz (144 MHz HAM Band),
• 174 - 222 MHz (VHF TV Band),
• 222 - 420 MHz (ACT1 Band),
• 420 - 470 MHz (430 MHz HAM Band),
• 470 - 800 (729) (UHF TV Band),
• (757 - 774) (UHF TV Band),
• 800 - 998.990 MHz
• (ACT2 Band;USA Cellular Blocked)
• TX 144 - 146(148) MHz,
• 222 - 225 MHz (USA only)
• 430 - 440(450) MHz,
• Channel Steps 5/9/10/12.5/15/20/25/50/100 kHz
• Frequency Stability ±5 ppm @ 14 °F to 122 °F (—10 °C to +50 °C)
• Repeater Shift ±600 kHz (144 MHz), ±1.6/5.0/7.6 MHz (430 MHz)
• Emission Type F2D, F3E
• Antenna Impedance 50 Ω
• Supply Voltage Nominal: 7.4 V DC, Negative Ground
• (Negative Ground) Operating: 5.0 ~ 16.0 V DC (EXT DC Jack)
• 11.0 ~ 16.0 V DC (EXT DC Jack while Charging)
• Current Consumption 150 mA (Receive)
• (Approx. @7.4 V) 60 mA (Standby, Saver Off)
• 20 mA (Standby, Saver On)
• 1 mA (ON Timer Activated)
• 200 mA (Auto Power Off)
• 1.6 A (5 W TX, 144 MHz)
• 1.5 A (1.5 W TX, 222 MHz: USA only)
• 1.8 A (5 W TX, 430 MHz)
• Operating Temperature –4 °F to 140 °F (–20 °C to +60 °C)
• Case Size 2.3 (W) x 3.5 (H) x 1.1 (D) (58 x 89 x 28.5 mm)
• (w/o knob, antenna, and belt clip)
• Weight 9.5 Oz (270 g) with FNB-80LI, and antenna.
