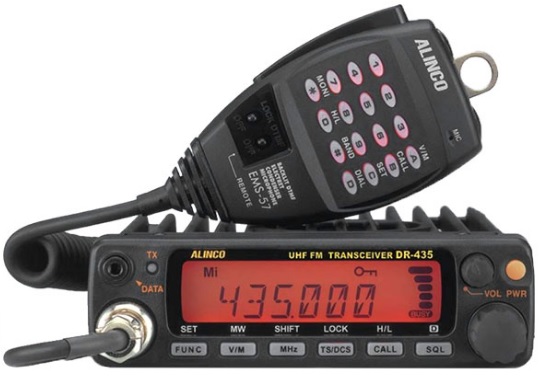

Radio Rig Alinco DR 435 ini Memiliki fitur lengkap 440 MHz 25 watt FM transceiver Artikel Baru sebuah layar alfanumerik (sampai Tujuh Karakter) Artikel Baru 100 channel Memori.
Specifications :
| Genaral |
|
| Frequency range |
: TX : 430.000 - 449.995 MHz |
| |
RX: 350.000 - 511.995MHz |
| Operating mode |
: 16K0F3E (FM)/8K50F3E (Narrow-FM) |
| Frequency resolution |
: 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz |
| Memory channel |
: 100 channels + 1 call channel |
| Ant. impedance |
: 50 ohm unbalanced |
| Frequency stability |
: Frequency stability |
| Microphone impedance |
: 2K ohm |
| Rated voltage |
: 13.8 VDC +/- 15% (11.7-15.8V) |
| Current |
: Transmit: approx. 10.0A |
| |
Receive: approx. 600mA (Max) 400mA (Squelched) |
| Operating temperature |
: -10dig.C to +60dig.C (+14dig.F to +140dig.F) |
| Ground |
: Negative ground |
| Dimensions |
: 142(W) x 40(H) x 174(D) mm |
| |
5.58"(W) x 1.57"(H) x 6.83"(D) |
| Weight |
: Approx. 1.0Kg (35.3oz) |
| Transmitter |
|
| Power output |
: 35W (HI) |
| |
20W (MID) |
| |
Approx. 5W (LOW) |
| Modulation |
: Variable reactance |
| Spurious emission |
: -60 dB or less |
| Maximum frequency deviation |
: +/- 5 KHz / +/- 2.5 KHz
(Narrow mode)
|
| Receiver |
|
| Circuitry |
: Double-conversion superheterodyne |
| Sensitivity |
: -12.0 dBu (0.25uV) or less (12dB SINAD) |
| Intermediate frequency |
: 1st IF 30.85MHz, 2nd IF 455 KHz |
| Squelch sensitivity |
: -16.0 dBu (0.1 uV) |
| Selectivity (-6 dB) |
: 12 KHz or more |
| |
: 6 KHz or more (Narrow mode) |
| Selectivity (-60 dB) |
: 28 KHz or less |
| |
: 14 KHz or less (Narrow mode) |
| Audio output |
: 2.0 W (8 ohm, 10% distortion) |
