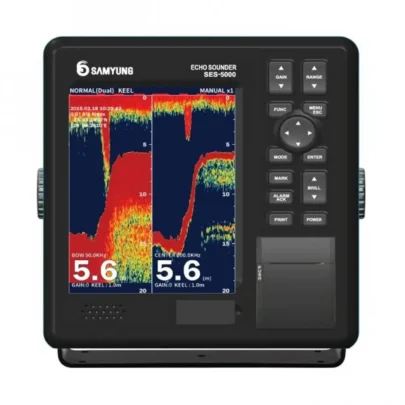

Key/Button
|
Description
|
|
1
|
GAIN
|
Setting gain. value
Press and hold both the ▲ and ▼ keys for three seconds. Once Automatic gain mode is selected.
The Automatic gain mode is cancelled by pressing the ▲ or ▼key.
|
|
2
|
RANGE
|
Setting depth range
Press and hold both the ▲ and ▼ keys for three seconds. Once Automatic range mode is selected.
The Automatic range mode is cancelled by pressing the ▲ or ▼
key..
|
|
3
|
FUNC
|
Please read 8.3 Func key
|
|
4
|
MENU/ESC
|
Open/Close the menu
Escape from currentoperation.
|
|
5
|
Cursor
|
Move in the menu list.
Set the level of adjustment
Move VRM marker.
|
|
6
|
MODE
|
Choose the screen to display.
|
|
7
|
ENTER
|
Choose and apply the menu. Open the next submenulist
|
|
8
|
MARK
|
Input waypoint.
|
|
9
|
ALARM ACK
|
Cancels the buzzer.
|
|
10
|
BRILL
|
Adjusts the screen brilliance.
|
|
11
|
PRINT
|
Starts printing.
|
|
12
|
POWER
|
Turn the power on/off
|
