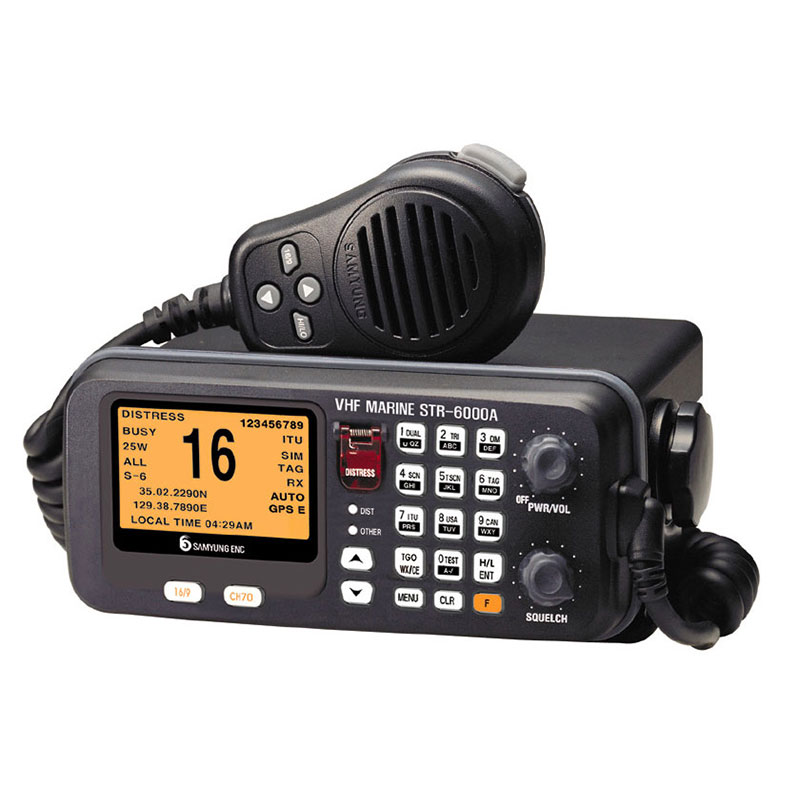

Samyung STR 6000A
Samyung STR 6000A atau radio rig marine samyung str 6000a ini Termasuk semua saluran yang ditentukan dalam ITU-RR (NOAA Cuaca saluran) DUAL / TRIPLE WATCH fungsi dan TAG SCAN fungsi built-in. 20 MMSI 2 nomor dalam jumlah kelompok-MMSI menyimpan, edisi dan fungsi panggilan.
GENERAL
TX Frequency : 151.000~159.150MHz
RX Frequency : 151.000~163.275MHz
Communication Mode : Simplex and Semi-Duplex
Channel Number: 183 channels (ITU 55, USA 57, CAN 61, WEA 10)
Private Channel : 760 channels
Type of Emission : FM(16K0G3E), DSC(16K0G2B)
Freq. Stability : ±10 ppm(-20℃ ~ +60℃)
Antenna Impedance : 50?
Consumed Currency (13.6V): TX high 5.5A max Max. Audio 1.5A max
Power Supply
- DC 24V (DC 18 ~ 31.2V)
- AC 100 ~ 120V, AC 200 ~ 240V
RECEIVER UNIT
Receiving Mode: DOUBLE CONVERSION SUPERHETERODYNE
Receiving Sensitivity
- 0.32㎶ (20dB SINAD)
- 0.22㎶ (12dB SINAD)
Squelch Sensitivity : Less than 0.22㎶
Spurious Emission : Less than -70dB
Residual Noise Level : Less than -40dB
Audio Output : 4.5W / 4?
TRANSMITTER UNIT
Antenna Output : HIGH/25W, LOW/1W
Starting Mode : SYNTHESIZER mode
Modulation Mode: VARIABLE REACTANCE FREQUENCY MODULATION
Occupancy Band Width : Within :16KHz
Max. Freq. Deviation : ±5KHz
Spurious Emission : Over 70dB
MIC Input Impedance : 2㏀
DSC WATCH KEEPING RECEIVER
Receiving Freq : 156.525MHz
Radio Wave Mode : G2B
DSC Modulation Speed: 1200baud(Within 600Hz ±30×10-6 Freq.)
DSC Modulation Mode : FSK
DSC Modulation Quotient : Within m=2±10%
Adjacent Channel Select : Less than 10-2 Bit error rate
Spurious Response : Less than 10-2 Bit error rate
Inter-Modulation Response: Less than 10-2 Bit error rate
Dynamic Range : Less than 10-2 Bit error rate.
UNTUK HARGA KAMI AKAN BERIKAN MELALUI PENAWARAN DENGAN HARGA TERBARU DAN HARGA TERBAIK.
Silahkan Hubungi Kami Via Email / Telp Kami Siap Membantu Keperluan Anda :
Telp : (021) 5694 2888, 5696 8845
Telp : (021) 5696 8763 HP : 081586838888
By: Alnindo Group
Email : alnindo@yahoo.com atau alnindomarketing@yahoo.com
